ProductsPosition : Home > Products

High Voltage Motors >> Standard Compact Structure Squirrel Cage Electric Motor

Standard Compact Structure Squirrel Cage Electric Motor

Technical characteristics

Electrical performance data

Mechanical dimension data

High voltage squirrel-cage induction motors are designed and produced according to IEC international standard. They are made of high quality cast iron or steel plate with good appearance and performance.

Power range: 160KW~1800KW

Frame range: H315~H560

Protection: IP44/IP54/IP55

Cooling: IC411

Mounting: B3, B35,V1

Duty: S1

Power condition: ±5% voltage change rate, ±2% frequency change rate, ±5% total change rate with voltage and frequency

Motors can rotate bidirectionally (except 2 pole motors).

2 pole motors only can be drove with coupling.

Full and terminal voltage start can’t lower than 85% stable start.

Product advantages

In order to keep good stable performance and quality, experienced design engineers are employed.

Windings are processed with VPI to keep stable insulation.

Specific requirements can be designed.

Vertical motors with big axial force

Thermal protection and vibration detector

Special mounting and shaft dimensions

Low vibration and low noise

PT100 bearing and temperature detecting

Special painting

Please note rated power, speed, voltage, frequency, mounting, rotation (by shaft side) when ordering motors. Please remark when requiring, if there are special requirements, such as non-standard power, voltage, frequency, mount dimensions, altitude, high locked-rotor torque, double shafts, etc.

APPLICATIONS

Motors can be applied to all kinds of machines, such as machine tool, air compressor, pump, ventilation, reduction gear, transmission belt, mining equipment, metallic equipment. However, motors can’t be used with inflammable, explosive and corrosive working site.

Product technical standards

Please check with KINCHI engineers

Product use environment

環(huán)境
適臺IP55防護等級的安裝
低于或等于海拔i1000米
環(huán)境溫度在-15℃-40℃
相對濕度

Operating Environment
Suitable for IP55 installations
Altitude not exceed 1000m
Ambient temperature -15℃ - 40℃
Relative humidity

溫度 Temperature	相對濕度 Relative Humidity
-15℃ ≤ T ≤ 20℃	100%
20℃ ≤ T ≤ 30℃	95%
30℃ ≤ T ≤ 40℃	55%

如果環(huán)境溫度和海拔高度不同，電機功率要考慮以下系數(shù)作選型
Motor Powers will be considered according to following data,if the ambient temperature and altitude are different

	<30℃	30℃~40℃	45℃	50℃	55℃	60℃
1000m	1.07	1.00	0.96	0.92	0.87	0.82
1500m	1.04	0.97	0.93	0.89	0.84	0.79
2000m	1.00	0.94	0.90	0.86	0.82	0.77
2500m	0.96	0.90	0.86	0.83	0.78	0.74
3000m	0.92	0.86	0.82	0.79	0.75	0.70
3500m	0.88	0.82	0.79	0.75	0.71	0.67
4000m	0.82	0.77	0.74	0.71	0.67	0.63

Y2 (6kV) STANDARD HIGH VOLTAGE MOTORS (IP54/IP55)
Motor Type	Rated Power		Rated Speed	Efficiency	Power Factor	Current			Torque			Moment of inertia (J)	Approx WT

						Full Load 6kV	Full Load 6.6kV	Locked Rotor	Full Load	Locked Rotor	Pull Out

	kW	(HP)	RPM	%	%	A	A	%FLC	kg-m	%FLT	%FLT	kg-m²	kg
Y₂3551-2	185	250	2980	93.5	84.0	22.7	20.6	700	60	70	200	2.6	1900
Y₂3552-2	200	270	2980	94.0	84.0	24.4	22.2	700	65	70	200	2.8	2000
Y₂3553-2	220	295	2980	94.2	84.0	26.8	24.3	700	72	70	200	3.0	2100
Y₂3553-2	250	335	2980	94.4	84.0	30.3	27.6	700	82	70	200	3.3	2200
Y₂3555-2	280	375	2980	94.6	86.0	33.1	30.1	700	92	70	200	3.5	2350
Y₂4001-2	315	420	2980	94.8	86.0	37.2	33.8	700	103	70	200	5.0	2900
Y₂4002-2	355	475	2980	94.9	86.0	41.9	38.1	700	116	70	200	5.5	3000
Y₂4003-2	400	535	2980	95.1	86.0	47.1	42.8	700	131	70	200	6.0	3100
Y₂4004-2	450	605	2980	95.2	86.0	52.9	48.1	700	147	70	200	7.0	3200
Y₂4501-2	500	670	2982	95.3	87.0	58.0	52.8	700	163	70	200	11	3500
Y₂4502-2	560	750	2982	95.4	87.0	64.9	59.0	700	183	70	200	12	3600
Y₂4503-2	630	845	2982	95.5	87.0	73.0	66.3	700	206	70	200	13	3700
Y₂4504-2	710	950	2982	95.6	87.0	82.1	74.7	700	232	70	200	14	3850
Y₂5001-2	800	1070	2982	95.7	88.0	91.4	83.1	700	261	70	200	17	5780
Y₂5002-2	900	1205	2982	95.8	88.0	102.7	93.4	700	294	70	200	19	6050
Y₂5003-2	1000	1340	2982	95.9	88.0	114.0	103.7	700	327	70	200	21	6320
Y₂5004-2	1120	1500	2982	96.0	88.0	127.6	116.0	700	366	70	200	23	6600
Y₂3551-4	185	250	1485	93.1	84.0	22.8	20.7	650	121	80	200	6.0	1900
Y₂3552-4	200	270	1485	93.9	84.0	24.4	22.2	650	131	80	200	7.0	2000
Y₂3553-4	220	295	1485	94.1	84.0	26.8	24.3	650	144	80	200	8.0	2100
Y₂3554-4	250	335	1485	94.3	84.0	30.4	27.6	650	164	80	200	9.0	2200
Y₂3555-4	280	375	1485	94.5	84.0	33.9	30.9	650	184	80	200	10	2300
Y₂4001-4	315	420	1485	94.6	85.0	37.7	34.3	650	207	80	200	11	3000
Y₂4002-4	355	475	1485	94.8	85.0	42.4	38.5	650	233	80	200	12	3100
Y₂4003-4	400	535	1485	95.0	85.0	47.7	43.3	650	262	80	200	13	3200
Y₂4004-4	450	605	1485	95.2	85.0	53.5	48.6	650	295	80	200	14	3300
Y₂4501-4	500	670	1485	95.3	86.0	58.7	53.4	650	328	80	200	22	3600
Y₂4502-4	560	750	1485	95.4	86.0	65.7	59.7	650	367	80	200	24	3700
Y₂4503-4	630	845	1485	95.5	86.0	73.8	67.1	650	413	80	200	26	3800
Y₂4504-4	710	950	1485	95.6	86.0	83.1	75.5	650	466	80	200	28	3950
Y₂5001-4	800	1070	1488	95.7	86.0	93.5	85.0	650	524	80	200	41	5820
Y₂5002-4	900	1210	1488	95.8	86.0	105.1	95.6	650	589	80	200	44	6100
Y₂5003-4	1000	1340	1488	95.9	86.0	116.7	106.1	650	655	80	200	47	6280
Y₂5004-4	1120	1500	1488	96.0	86.0	130.5	118.7	650	733	80	200	50	6420
Y₂5601-4	1250	1680	1488	96.1	87.0	143.9	130.8	650	819	70	200	70	8020
Y₂5602-4	1400	1880	1488	96.2	87.0	161.0	146.3	650	917	70	200	74	8390
Y₂5603-4	1600	2140	1488	96.4	87.0	183.6	166.9	650	1048	70	200	78	8750
Y₂5604-4	1800	2410	1488	96.5	87.0	206.3	187.6	650	1179	70	200	82	9100
Y₂3551-6	160	215	985	93.4	80.0	20.6	18.7	600	158	80	200	9.0	2200
Y₂3552-6	185	250	985	93.5	80.0	23.8	21.6	600	183	80	200	10	2300
Y₂3553-6	200	270	985	93.6	80.0	25.7	23.4	600	198	80	200	11	2400
Y₂4001-6	220	295	988	93.8	82.0	27.5	25.0	600	217	80	200	14	2900
Y₂4002-6	250	335	988	93.9	82.0	31.2	28.4	600	247	80	200	16	3000
Y₂4003-6	280	375	988	94.1	82.0	34.9	31.7	600	276	80	200	18	3200
Y₂4004-6	315	420	988	94.3	82.0	39.2	35.6	600	311	80	200	20	3400
Y₂4501-6	355	475	988	94.5	83.0	43.6	39.6	600	350	80	200	28	3500
Y₂4502-6	400	535	988	94.6	83.0	49.0	44.6	600	395	80	200	30	3600
Y₂4503-6	450	605	988	94.7	83.0	55.1	50.1	600	444	80	200	32	3700
Y₂4504-6	500	670	988	94.9	83.0	61.1	55.5	600	493	80	200	34	3820
Y₂5001-6	560	750	990	95.1	83.0	68.3	62.1	600	551	80	200	54	5610
Y₂5002-6	630	845	990	95.2	83.0	76.7	69.7	600	620	80	200	58	5790
Y₂5003-6	710	950	990	95.3	83.0	86.4	78.5	600	699	80	200	62	6010
Y₂5004-6	800	1070	990	95.4	83.0	97.2	88.4	600	787	80	200	66	6230
Y₂5601-6	900	1210	990	95.6	84.0	107.8	98.0	600	886	70	200	94	7650
Y₂5602-6	1000	1340	990	95.7	84.0	119.7	108.8	600	984	70	200	102	7950
Y₂5603-6	1120	1500	990	95.8	84.0	133.9	121.8	600	1102	70	200	110	8250
Y₂5604-6	1250	1680	990	95.9	84.0	149.3	135.7	600	1230	70	200	118	8550
Y₂4001-8	160	215	738	93.2	76.0	21.7	19.8	550	211	80	200	15	3000
Y₂4002-8	185	250	738	93.3	76.0	25.1	22.8	550	244	80	200	16	3100
Y₂4003-8	200	270	738	93.5	77.0	26.7	24.3	550	264	80	200	18	3200
Y₂4004-8	220	295	738	93.7	77.0	29.3	26.7	550	290	80	200	20	3300
Y₂4501-8	250	335	740	93.9	78.0	32.8	29.9	550	329	80	200	28	3500
Y₂4502-8	280	375	740	94.1	78.0	36.7	33.4	550	369	80	200	30	3600
Y₂4503-8	315	420	740	94.2	78.0	41.3	37.5	550	415	80	200	32	3700
Y₂4504-8	355	475	740	94.4	78.0	46.4	42.2	550	467	80	200	34	3820
Y₂5001-8	400	535	742	94.5	79.0	51.6	46.9	550	525	80	200	54	5250
Y₂5002-8	450	605	742	94.6	79.0	57.9	52.7	550	591	80	200	58	5490
Y₂5003-8	500	670	742	94.8	80.0	63.4	57.7	550	657	80	200	62	5750
Y₂5004-8	560	750	742	94.9	80.0	71.0	64.5	550	735	80	200	66	6020
Y₂5601-8	630	845	745	95.1	81.0	78.7	71.5	550	824	70	200	96	7000
Y₂5602-8	710	950	745	95.3	81.0	88.5	80.5	550	929	70	200	105	7350
Y₂5603-8	800	1070	745	95.4	81.0	99.6	90.6	550	1046	70	200	110	7700
Y₂5604-8	900	1210	745	95.6	81.0	111.8	101.7	550	1177	70	200	116	8100

Y2 (10kV) STANDARD HIGH VOLTAGE MOTORS (IP54/IP55)
Motor Type	Rated Power		Rated Speed	Efficiency	Power Factor	Current			Torque			Moment of inertia (J)	Approx WT

						Full Load 10kV	Full Load 11kV	Locked Rotor	Full Load	Locked Rotor	Pull Out

	kW	(HP)	RPM	%	%	A	A	%FLC	kg-m	%FLT	%FLT	kg-m²	kg
Y₂4001-2	220	295	2980	93.2	84	16.2	14.7	700	72	70	200	5.0	2900
Y₂4002-2	250	335	2980	93.3	84	18.4	16.7	700	82	70	200	5.5	3000
Y₂4003-2	280	375	2980	93.5	85	20.3	18.5	700	92	70	200	6.0	3100
Y₂4004-2	315	420	2980	93.8	85	22.8	20.7	700	103	70	200	7.0	3200
Y₂4501-2	355	475	2982	94.3	86	25.3	23.0	700	116	70	200	11	3500
Y₂4502-2	400	535	2982	94.4	86	28.4	25.9	700	131	70	200	12	3600
Y₂4503-2	450	605	2982	94.5	86	32.0	29.1	700	147	70	200	13	3700
Y₂4504-2	500	670	2982	94.8	86	35.4	32.2	700	163	70	200	14	3850
Y₂5001-2	560	750	2985	95.0	87	39.1	35.6	700	183	70	200	15	5500
Y₂5002-2	630	845	2985	95.2	87	43.9	39.9	700	206	70	200	17	5780
Y₂5003-2	710	950	2985	95.3	87	49.4	44.9	700	232	70	200	19	6050
Y₂5004-2	800	1070	2985	95.5	88	55.0	50.0	700	261	70	200	21	6320
Y₂5005-2	900	1210	2985	95.8	88	61.6	56.0	700	294	70	200	23	6600
Y₂4001-4	220	295	1482	93.5	84	16.2	14.7	650	145	80	200	11	3000
Y₂4002-4	250	335	1482	93.8	84	18.3	16.7	650	164	80	200	12	3100
Y₂4003-4	280	375	1482	94.0	84	20.5	18.6	650	184	80	200	13	3200
Y₂4004-4	315	420	1482	94.2	84	23.0	20.9	650	207	80	200	14	3300
Y₂4501-4	355	475	1485	94.5	85	25.5	23.2	650	233	80	200	20	3500
Y₂4502-4	400	535	1485	94.8	85	28.7	26.1	650	262	80	200	22	3600
Y₂4503-4	450	605	1485	95.0	85	32.2	29.3	650	295	80	200	24	3700
Y₂4504-4	500	670	1485	95.2	86	35.3	32.1	650	328	80	200	26	3800
Y₂4505-4	560	750	1485	95.3	86	39.5	35.9	650	367	80	200	28	3950
Y₂5001-4	630	845	1488	95.4	86	44.3	40.3	650	413	80	200	41	5820
Y₂5002-4	710	950	1488	95.5	86	49.9	45.4	650	465	80	200	44	6100
Y₂5003-4	800	1070	1488	95.6	87	55.5	50.5	650	524	80	200	47	6280
Y₂5004-4	900	1210	1488	95.7	87	62.4	56.7	650	589	80	200	50	6420
Y₂5601-4	1000	1340	1488	95.8	86	70.1	63.7	650	655	70	200	70	8020
Y₂5602-4	1120	1500	1488	95.9	86	78.4	71.3	650	733	70	200	74	8390
Y₂5603-4	1250	1680	1488	96.0	87	86.4	78.6	650	819	70	200	78	8750
Y₂5604-4	1400	1880	1488	96.1	87	96.7	87.9	650	917	70	200	82	9100
Y₂4501-6	220	295	985	93.6	82	16.5	15.0	600	218	80	200	26	3400
Y₂4502-6	250	335	985	93.8	82	18.8	17.1	600	247	80	200	28	3500
Y₂4503-6	280	375	985	94.0	82	21.0	19.1	600	277	80	200	30	3600
Y₂4504-6	315	420	985	94.2	82	23.5	21.4	600	312	80	200	32	3700
Y₂4505-6	355	475	985	94.3	82	26.5	24.1	600	351	80	200	34	3820
Y₂5001-6	400	535	985	94.4	83	29.5	26.8	600	396	80	200	50	5450
Y₂5002-6	450	605	988	94.6	83	33.1	30.1	600	444	80	200	54	5610
Y₂5003-6	500	670	988	94.8	83	36.7	33.4	600	493	80	200	58	5790
Y₂5004-6	560	750	990	95.0	83	41.0	37.3	600	551	80	200	62	6010
Y₂5005-6	630	845	990	95.1	83	46.1	41.9	600	620	80	200	66	6230
Y₂5601-6	710	950	992	95.3	83	51.8	47.1	600	697	70	200	87	7400
Y₂5602-6	800	1070	992	95.4	83	58.3	53.0	600	786	70	200	94	7650
Y₂5603-6	900	1210	992	95.5	84	64.8	58.9	600	884	70	200	102	7950
Y₂5604-6	1000	1340	992	95.6	84	71.9	65.4	600	982	70	200	110	8250
Y₂5605-6	1120	1500	992	95.7	84	80.4	73.1	600	1100	70	200	118	8550
Y₂4501-8	220	295	740	93.6	78	17.4	15.8	550	290	80	200	30	3600
Y₂4502-8	250	335	740	93.8	78	19.7	17.9	550	329	80	200	32	3700
Y₂4503-8	280	375	740	94.0	78	22.0	20.0	550	369	80	200	34	3820
Y₂5001-8	315	420	742	94.2	78	24.8	22.5	550	414	80	200	54	5250
Y₂5002-8	355	475	742	94.4	78	27.8	25.3	550	466	80	200	58	5490
Y₂5003-8	400	535	742	94.5	79	30.9	28.1	550	525	80	200	62	5750
Y₂5004-8	450	605	742	94.6	79	34.8	31.6	550	591	80	200	66	6020
Y₂5601-8	500	670	745	94.7	80	38.1	34.6	550	654	70	200	88	6650
Y₂5602-8	560	750	745	94.8	80	42.6	38.8	550	733	70	200	96	7000
Y₂5603-8	630	845	745	95.0	81	47.3	43.0	550	824	70	200	105	7350
Y₂5604-8	710	950	745	95.2	81	53.2	48.3	550	929	70	200	110	7700
Y₂5605-8	800	1070	745	95.3	81	59.8	54.4	550	1046	70	200	116	8100

STANDARD HIGH VOLTAGE MOTORS (IP54/IP55) 6kV

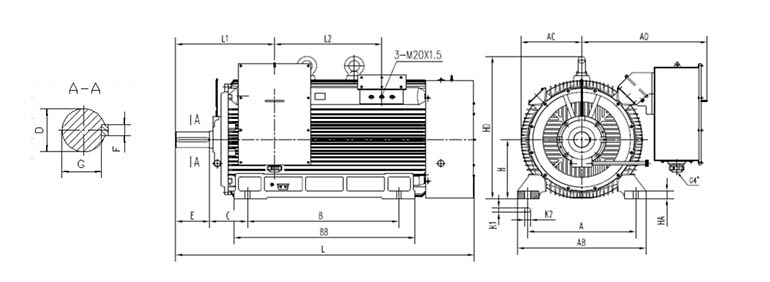

● MOUNTING DIMENSIONS FOR INSTALLATION
Frame Size	Pole	MOUNTING
		A	B	C	D		E	F		G		H		K1		K2
355	2	630±1.4	900±1.4	2.54±4	75	+0.035	140±0.5	20	0	67.5	0	355	0	28	+0.52	35
						+0.013			-0.052		-0.2		-1		0
355	4~6	630±1.4	900±1.4	2.54±4	100	+0.035	210±0.57	28	0	90	0	355	0	28	+0.52	35
						+0.013			-0.052		-0.2		-1		0
400	2	710±1.75	1000±1.75	280±4	85	+0.035	170±0.5	22	0	76	0	400	0	35	+0.62	42
						+0.013			-0.052		-0.2		-1		0
400	4~8	710±1.75	1000±1.75	280±4	110	+0.035	210±0.57	28	0	100	0	400	0	35	+0.62	42
						+0.013			-0.052		-0.2		-1		0
450	2	800±1.75	1120±1.75	280±4	95	+0.035	170±0.5	25	0	86	0	450	0	35	+0.62	42
						+0.013			-0.052		-0.2		-1		0
450	4	800±1.75	1120±1.75	280±4	120	+0.035	210±0.57	32	0	109	0	450	0	35	+0.62	42
						+0.013			-0.062		-0.2		-1		0
450	6~8	800±1.75	1120±1.75	280±4	130	+0.04	250±0.57	32	0	119	0	450	0	35	+0.62	42
						+0.015			-0.062		-0.2		-1		0
500	2	900±2.1	1250±2.1	315±4	110	+0.035	210±0.57	28	0	100	0	500	0	42	+0.62	52
						+0.013			-0.052		-0.2		-1		0
500	4	900±2.1	1250±2.1	315±4	130	+0.04	250±0.57	32	0	119	0	500	0	42	+0.62	52
						+0.015			-0.062		-0.2		-1		0
500	6~8	900±2.1	1250±2.1	315±4	140	+0.04	250±0.57	36	0	128	0	500	0	42	+0.62	52
						+0.015			-0.062		-0.3		-1		0
560	4	1000±2.1	1400±2.1	355±4	150	+0.04	250±0.57	36	0	138	0	560	0	42	+0.62	52
						+0.015			-0.062		-0.3		-1		0
560	6~8	1000±2.1	1400±2.1	355±4	160	+0.04	300±0.65	40	0	147	0	560	0	42	+0.62	52
						+0.015			-0.062		-0.3		-1		0

● OUTLINE DIMENSIONS FOR INSTALLATION
Frame Size	Pole	OUTLINE
Frame Size	Pole	AC	AD	AB	BB	HA	HD	L1	L2	L
355	2	370	780	780	1110	50	830	514	680	1740
355	4~6	370	780	780	1110	50	830	584	680	1830
400	2	420	900	870	1200	50	960	656	600	1980
400	4~8	420	900	870	1200	50	960	696	600	2020
450	2	450	930	950	1340	50	1070	651	785	2150
450	4	450	930	950	1340	50	1070	691	785	2180
450	6~8	450	930	950	1340	50	1070	731	785	2220
500	2	525	990	1080	1490	50	1220	789	1045	2500
500	4~8	525	990	1080	1490	50	1220	829	1045	2410
560	4	605	1050	1170	1680	60	1480	802	1010	2690
560	6~8	605	1050	1170	1680	60	1480	852	1010	2740

STANDARD HIGH VOLTAGE MOTORS (IP54/IP55) 10kV

● MOUNTING DIMENSIONS FOR INSTALLATION
Frame Size	Pole	MOUNTING
		A	B	C	D		E	F		G		H		K1		K2
355	2	630±1.4	900±1.4	2.54±4	75	+0.035	140±0.5	20	0	67.5	0	355	0	28	+0.52	35
						+0.013			-0.052		-0.2		-1		0
355	4~6	630±1.4	900±1.4	2.54±4	100	+0.035	210±0.57	28	0	90	0	355	0	28	+0.52	35
						+0.013			-0.052		-0.2		-1		0
400	2	710±1.75	1000±1.75	280±4	85	+0.035	170±0.5	22	0	76	0	400	0	35	+0.62	42
						+0.013			-0.052		-0.2		-1		0
400	4~8	710±1.75	1000±1.75	280±4	110	+0.035	210±0.57	28	0	100	0	400	0	35	+0.62	42
						+0.013			-0.052		-0.2		-1		0
450	2	800±1.75	1120±1.75	280±4	95	+0.035	170±0.5	25	0	86	0	450	0	35	+0.62	42
						+0.013			-0.052		-0.2		-1		0
450	4	800±1.75	1120±1.75	280±4	120	+0.035	210±0.57	32	0	109	0	450	0	35	+0.62	42
						+0.013			-0.062		-0.2		-1		0
450	6~8	800±1.75	1120±1.75	280±4	130	+0.04	250±0.57	32	0	119	0	450	0	35	+0.62	42
						+0.015			-0.062		-0.2		-1		0
500	2	900±2.1	1250±2.1	315±4	110	+0.035	210±0.57	28	0	100	0	500	0	42	+0.62	52
						+0.013			-0.052		-0.2		-1		0
500	4	900±2.1	1250±2.1	315±4	130	+0.04	250±0.57	32	0	119	0	500	0	42	+0.62	52
						+0.015			-0.062		-0.2		-1		0
500	6~8	900±2.1	1250±2.1	315±4	140	+0.04	250±0.57	36	0	128	0	500	0	42	+0.62	52
						+0.015			-0.062		-0.3		-1		0
560	4	1000±2.1	1400±2.1	355±4	150	+0.04	250±0.57	36	0	138	0	560	0	42	+0.62	52
						+0.015			-0.062		-0.3		-1		0
560	6~8	1000±2.1	1400±2.1	355±4	160	+0.04	300±0.65	40	0	147	0	560	0	42	+0.62	52
						+0.015			-0.062		-0.3		-1		0

● OUTLINE DIMENSIONS FOR INSTALLATION
Frame Size	Pole	OUTLINE
Frame Size	Pole	AC	AD	AB	BB	HA	HD	L1	L2	L
355	2	370	780	780	1110	50	830	514	680	1740
355	4~6	370	780	780	1110	50	830	584	680	1830
400	2	420	900	870	1200	50	960	656	600	1980
400	4~8	420	900	870	1200	50	960	696	600	2020
450	2	450	930	950	1340	50	1070	651	785	2150
450	4	450	930	950	1340	50	1070	691	785	2180
450	6~8	450	930	950	1340	50	1070	731	785	2220
500	2	525	990	1080	1490	50	1220	789	1045	2500
500	4~8	525	990	1080	1490	50	1220	829	1045	2410
560	4	605	1050	1170	1680	60	1480	802	1010	2690
560	6~8	605	1050	1170	1680	60	1480	852	1010	2740

Previous Product: YRKK/YRKS High Voltage Slip Ring Motor
Next Product: Y2HV Enlarge Power Compact Structure Squirrel Cage Motor

　
　　　　　　 YOU CAN CONTACT US IMMEDIATELY:

Name：	*
Phone：
Email：	*
Other Contact：
Topic：
Contents：	*
Verification Code：	4251 *
